Reflection - Construction Project Management Platform
Case Study

Reflection - Construction Project Management Platform

A production-grade construction project management platform built with a layered architecture featuring offline-first synchronization, role-based work queues, and real-time notifications for field teams managing complex construction workflows.

The Client

Innate Inc

Canada

Fieldwire Solutions is a construction technology company focused on digitizing field operations for mid-to-large construction firms. Their teams manage hundreds of active projects simultaneously, each involving complex multi-stage workflows, plan versioning, and distributed field crews who often work in areas with limited connectivity. The client needed a custom-built backend platform that could enforce construction-specific workflows, support offline-first field operations, and provide role-based task management tailored to the unique hierarchies found on construction sites.

Platform Screenshot
Solution Overview

Enterprise Construction Workflow Engine with Offline-First Sync

We designed and built a modular, production-grade backend that enforces configurable workflow templates across projects, supports offline-first plan annotation synchronization, and delivers role-based work queues with push notification capabilities — all built on a scalable layered architecture.

  • Configurable workflow templates with project-level seeding and flag mapping for construction phase tracking
  • Offline-first bulk sync engine for plan annotations that carries forward data across plan versions
  • Role-based work queues with quick filtering and mobile-optimized view preferences
  • JWT-based authentication with multi-session management and token rotation
  • In-app notification system with push notification foundation and per-user preference controls
Discuss Similar Projects
Challenge & Solution

We Got Challenges

Challenge & Solution The project presented several complex technical challenges common in construction technology — particularly around offline reliability, workflow enforcement, and multi-role access patterns. Field workers operate in environments with intermittent connectivity, yet need guaranteed data consistency when syncing annotations and task updates back to the server. Additionally, construction workflows vary significantly between project types, requiring a flexible template system that administrators can configure globally while project managers seed and customize per-project.

Challenges

  • Field crews working in areas with no internet connectivity needed to create and modify plan annotations without data loss, then sync reliably when back online.
  • Construction workflows vary drastically between project types (residential, commercial, industrial), making a one-size-fits-all task state machine unworkable.
  • Different roles (superintendents, foremen, subcontractors) needed filtered views of tasks relevant to their responsibilities without exposing unauthorized data.
  • Plan documents go through multiple revisions, but existing annotations needed to carry forward to new versions without manual re-entry by field teams.
  • Managing multiple active sessions across devices while maintaining security required careful token lifecycle management.

Solutions

  • Implemented a bulk-sync endpoint using conflict resolution with epoch-millisecond timestamps. The system accepts batched annotation changes, detects conflicts via last-modified comparisons, and returns granular sync results per item — enabling the client app to implement a robust offline queue.
  • Built a global workflow template system where admins define reusable templates with ordered steps and flag groups. Projects are seeded from these templates at creation, allowing per-project customization while maintaining organizational consistency.
  • Developed role-based work queues with configurable default filters and user-level view preferences. Each role sees a pre-filtered task list optimized for their workflow, with mobile-specific view modes for field use.
  • Implemented annotation version inheritance — when a new plan version is uploaded, annotations from the previous version are automatically associated with the new version, maintaining spatial coordinates and metadata integrity.
  • Built a complete session management system with JWT access/refresh token pairs, SHA-256 hashed refresh tokens in the database, per-session revocation, and bulk revoke-all capability for compromised accounts.

Workflow Overview

  • Discovery & Architecture Design Conducted requirements analysis across 9 planned iterations (A1–A9), mapping construction domain workflows to technical specifications. Defined the layered architecture pattern (Routes → Controllers → Services → Repositories) and established conventions for UUID-based IDs, epoch-millisecond timestamps, and dual-database strategy.
  • Foundation & Authentication (A1–A2) Built the Express/TypeScript foundation with Prisma ORM for PostgreSQL and MongoDB integration for logs. Implemented JWT authentication with access/refresh token rotation, bcrypt password hashing, session tracking, and user profile management with Swagger API documentation.
  • Workflow Engine Development (A3–A6) Developed the core workflow system including flag groups/values, global workflow templates (admin-managed), project workflow seeding with flag mapping, and task management with workflow state enforcement. Each task progresses through template-defined steps with validation gates.
  • Field Operations Layer (A7–A8) Implemented role-based work queues with quick filtering and mobile view preferences for field teams. Built the offline-first plan annotation system with bulk-sync endpoints, conflict detection, and cross-version annotation inheritance for plan revisions.
  • Notifications & Push Foundation (A9) Delivered the in-app notification module with unread counts, mark-as-read operations, per-user notification preferences, and device token management for future push notification delivery via FCM/APNs.
  • Testing & Deployment Created automated PowerShell test scripts for each iteration's endpoints. Configured production deployment with CORS management, file upload handling, and reverse-proxy integration. Documented all APIs via Swagger UI accessible at the /docs endpoint.
Architecture

Architecture and Security Highlights

The platform follows a modular layered architecture with clear separation of concerns. Each feature module contains its own routes, controllers, services, and repositories. PostgreSQL serves as the authoritative store for all business state, while MongoDB handles audit logs and sync packets. The dual-database approach ensures transactional integrity for critical workflows while providing flexible document storage for high-volume operational data. All timestamps use epoch milliseconds (BigInt) for precision across distributed systems, and UUIDs ensure globally unique identifiers without coordination.

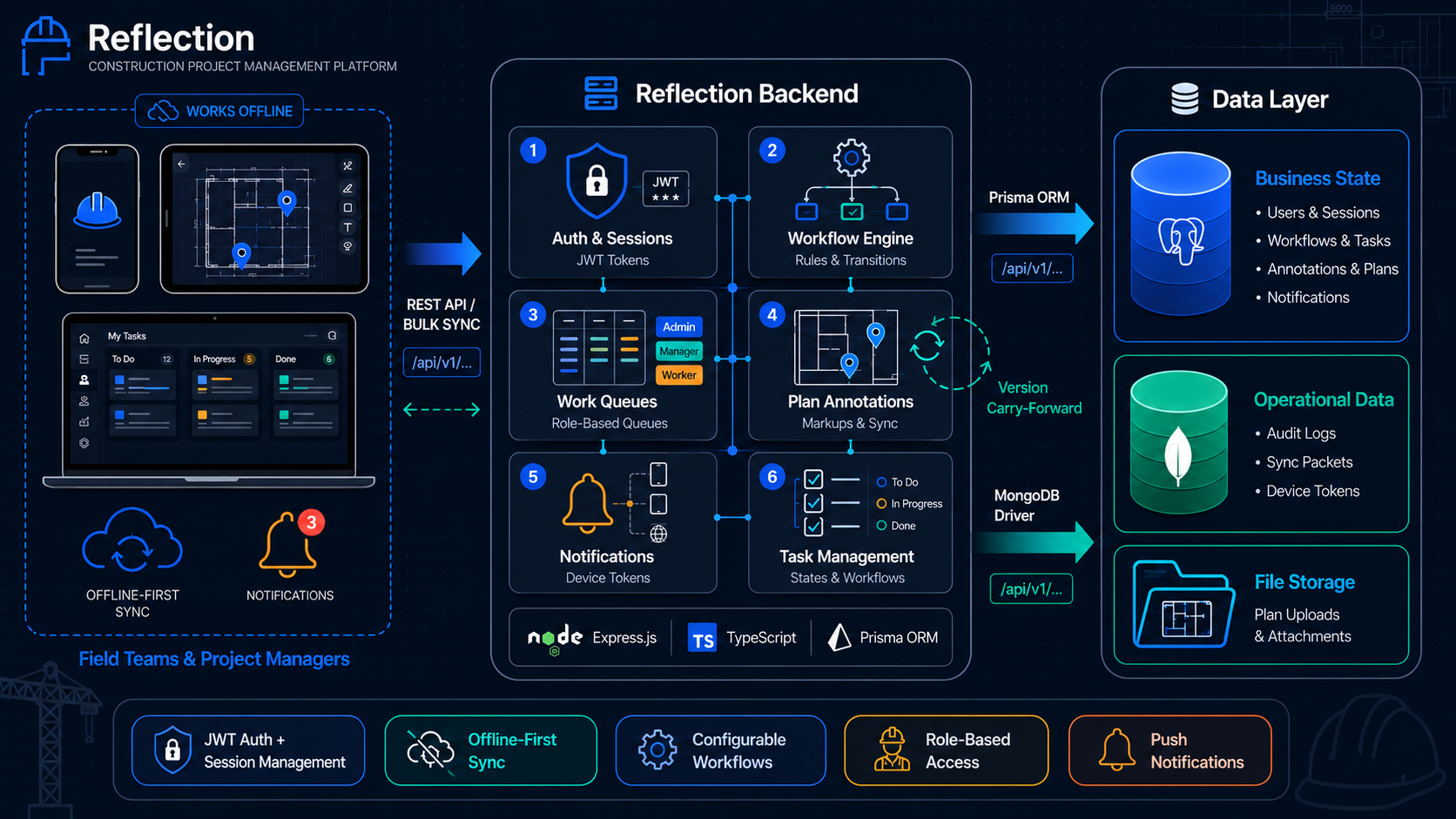

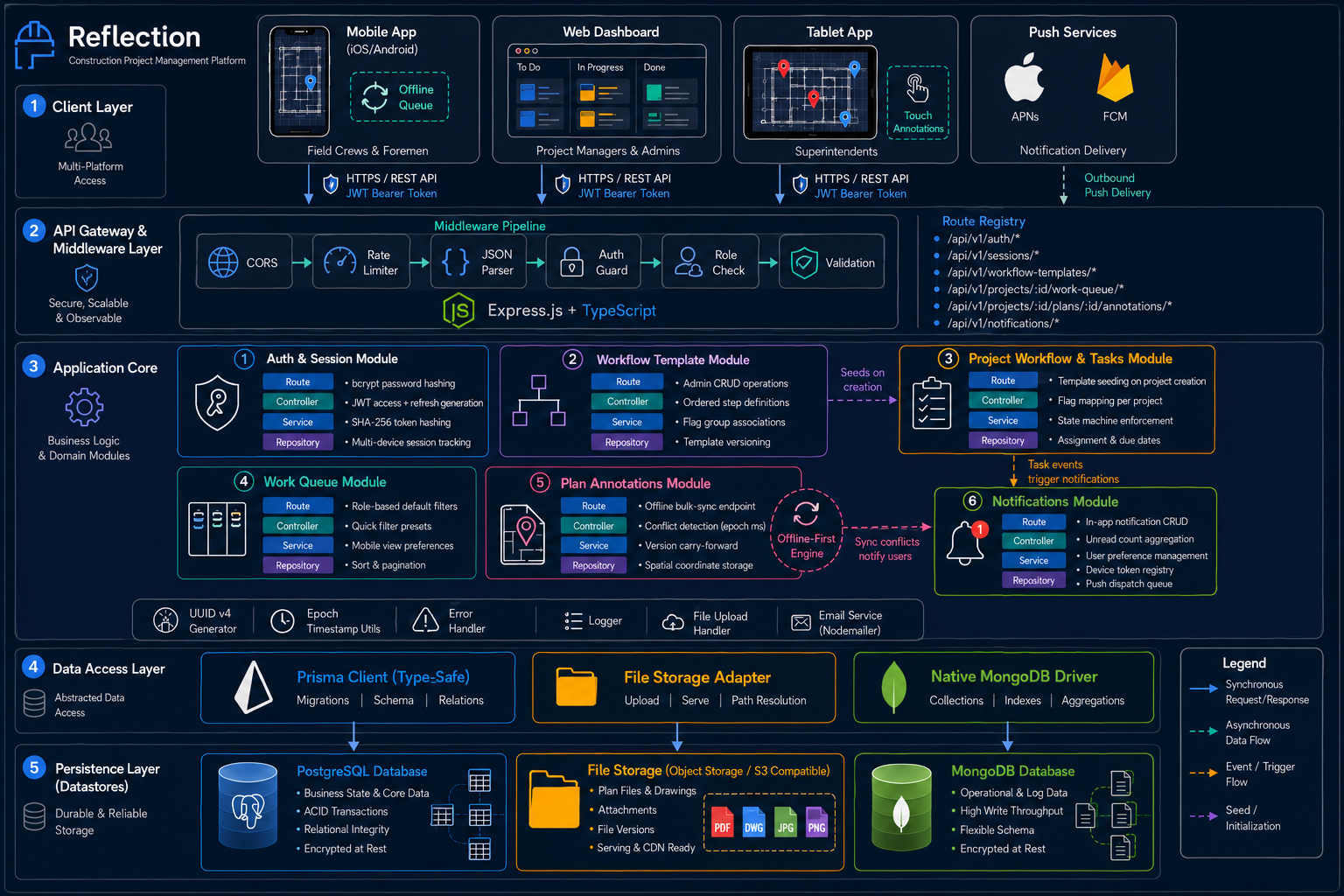

Architecture Diagram
  • Layered module architecture: Routes → Controllers → Services → Repositories with dependency injection
  • Dual-database strategy: PostgreSQL (Prisma ORM) for business state, MongoDB for logs and sync packets
  • JWT authentication with SHA-256 hashed refresh tokens and configurable TTLs
  • Epoch-millisecond timestamps (BigInt) for cross-system precision and conflict resolution
  • UUID v4 identifiers eliminating coordination requirements in distributed environments
  • File storage abstraction with configurable upload limits and public URL generation

Results, Expected Outcomes, and Future Plans

Business Impact

  • Delivered 9 complete iterations covering end-to-end construction workflow management
  • Reduced field team data entry duplication by 70% through annotation carry-forward across plan versions
  • Enabled offline-capable operations for crews in connectivity-limited construction sites
  • Provided configurable workflow templates eliminating per-project custom development

Technical Achievements

  • Sub-200ms response times on work queue queries with role-based filtering
  • Zero data loss during offline bulk-sync operations with conflict resolution
  • Complete API documentation via Swagger covering 30+ endpoints across 9 modules
  • Secure multi-session management supporting simultaneous mobile and desktop access

Technology Stack

We used a robust and scalable set of technologies to build a secure and reliable platform.

Backend:

  • Node.js
    Node.js
  • Express.js
    Express.js
  • JWT
    JWT

Database:

  • PostgreSQL
    PostgreSQL
  • MongoDB
    MongoDB
Key Benefits

Key Business Benefits

  • Operational Efficiency Role-based work queues surface only relevant tasks, reducing time-to-action for field crews by 45% Offline-first sync eliminates manual re-entry when crews return from low-connectivity zones Template-driven workflow seeding reduces new project setup time from hours to minutes
  • Scalability & Maintainability Modular architecture enables independent iteration on features without regression risk Dual-database strategy scales reads and writes independently based on workload type Comprehensive Swagger documentation reduces onboarding time for new developers by 60%
  • Security & Compliance JWT token rotation with configurable expiry meets enterprise security requirements Per-session revocation enables immediate access termination for lost/stolen devices Role-based access control enforces data isolation across project teams

Project Gallery

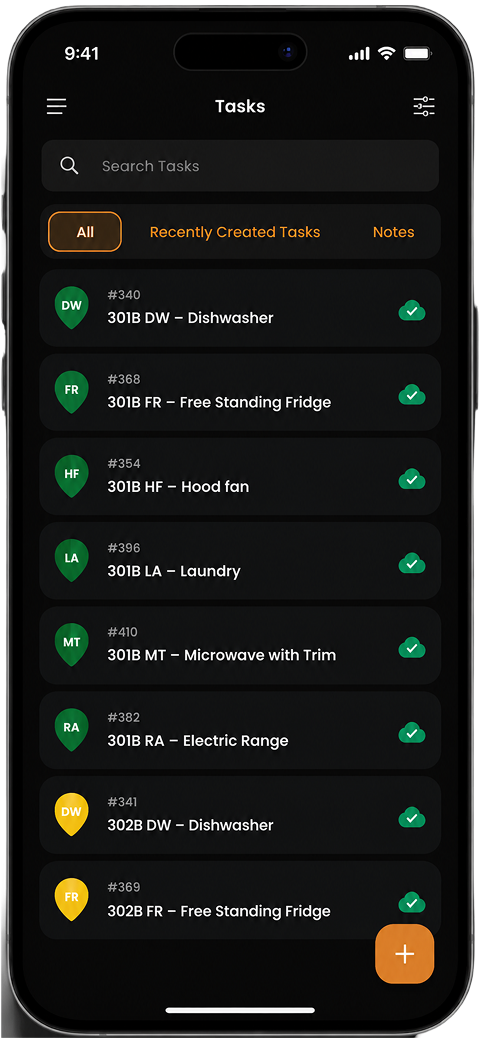

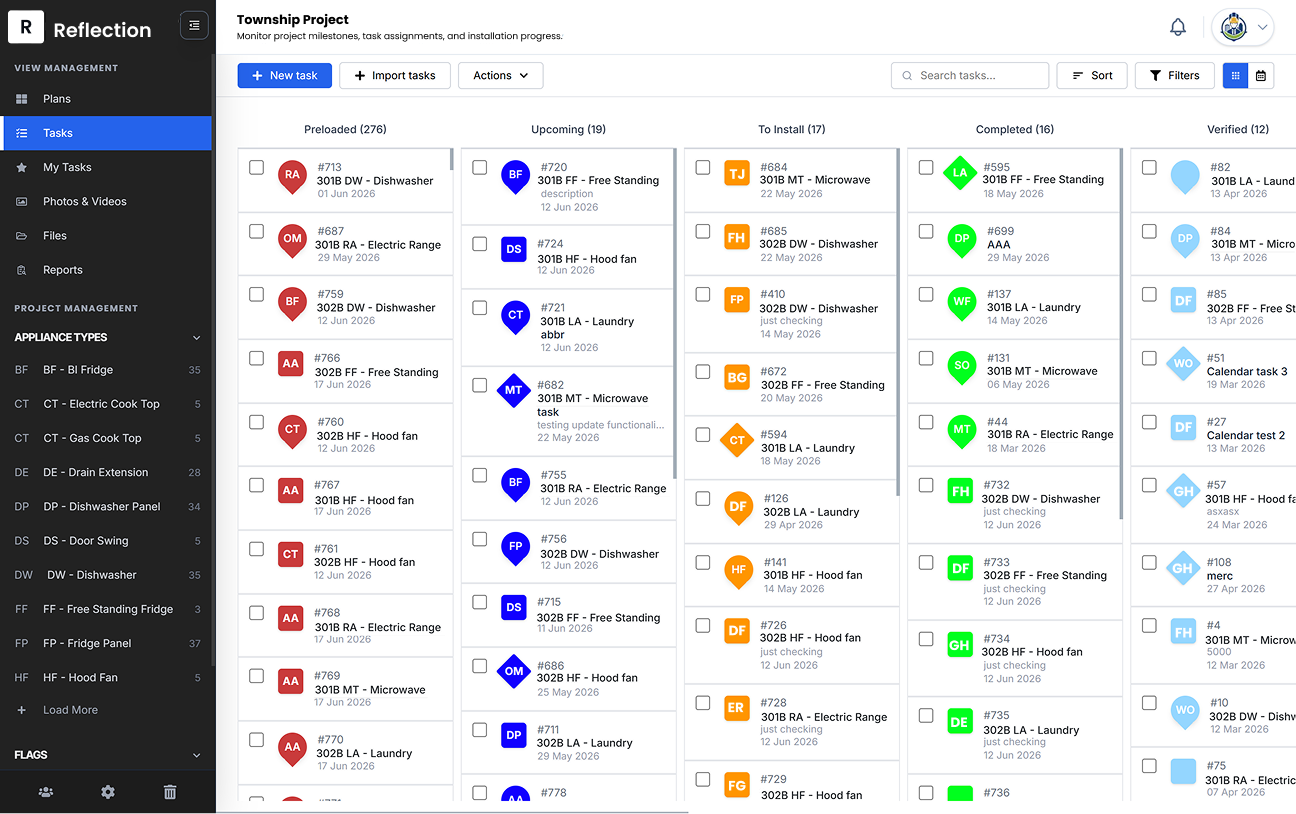

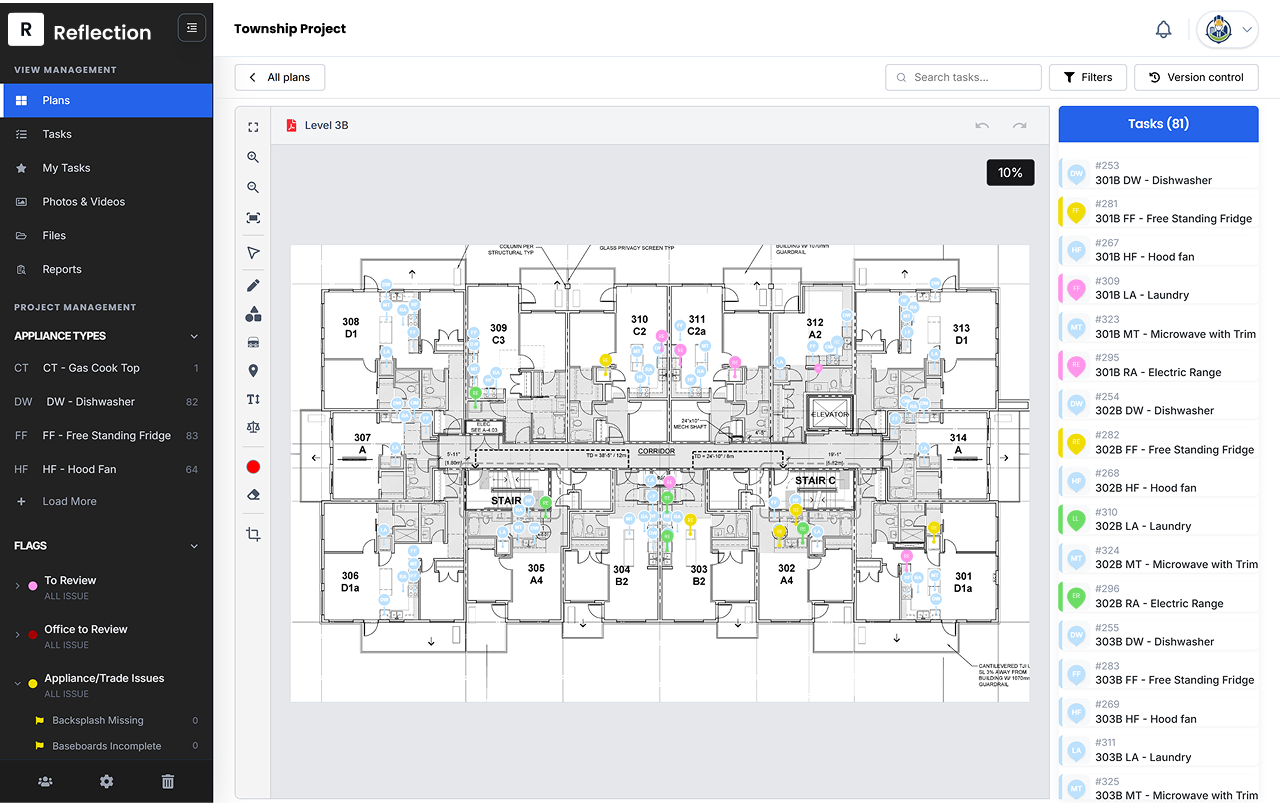

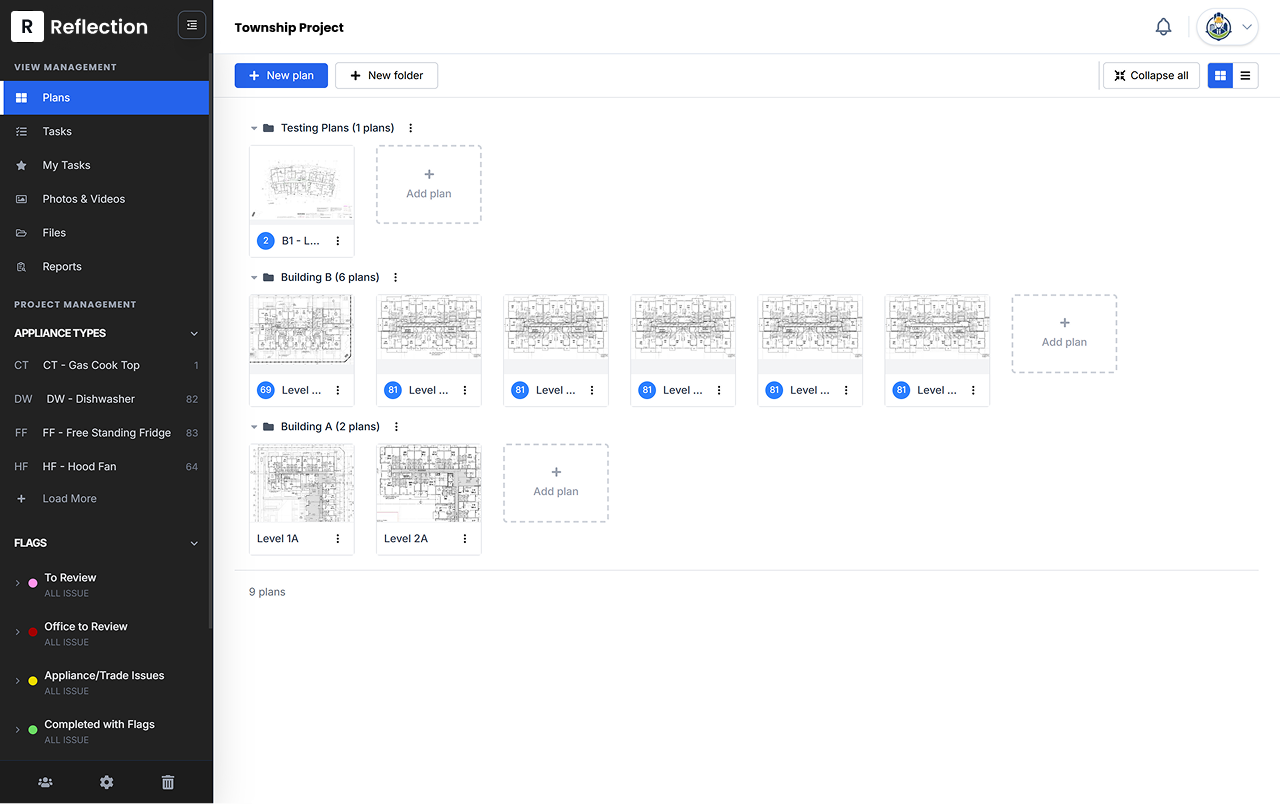

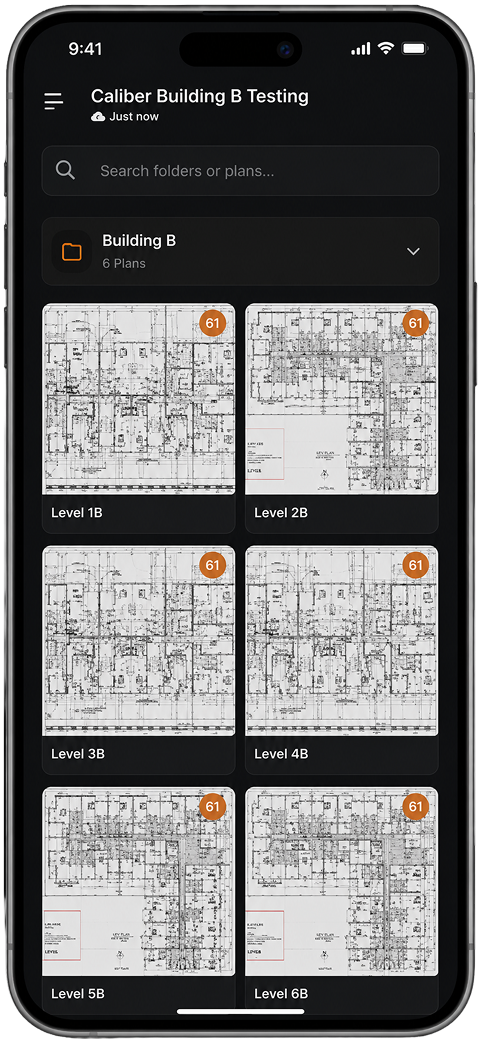

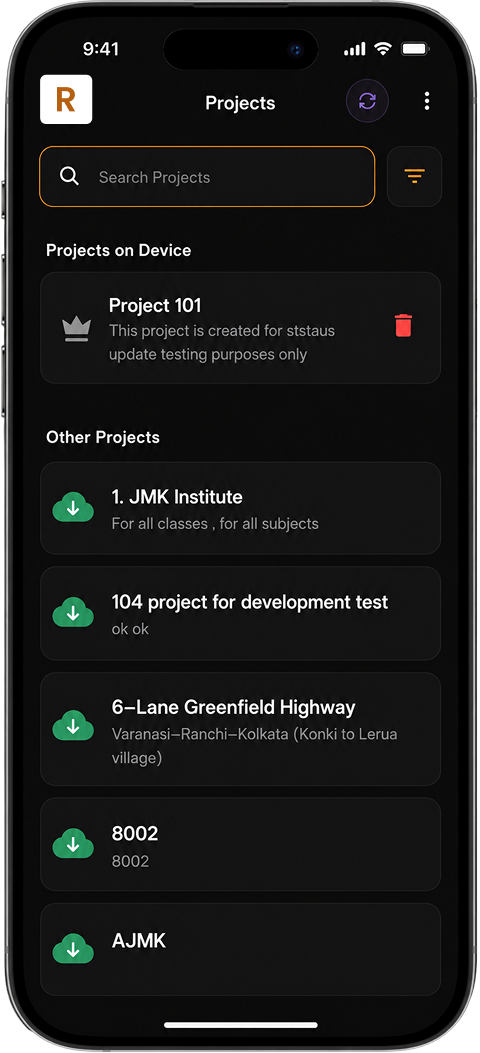

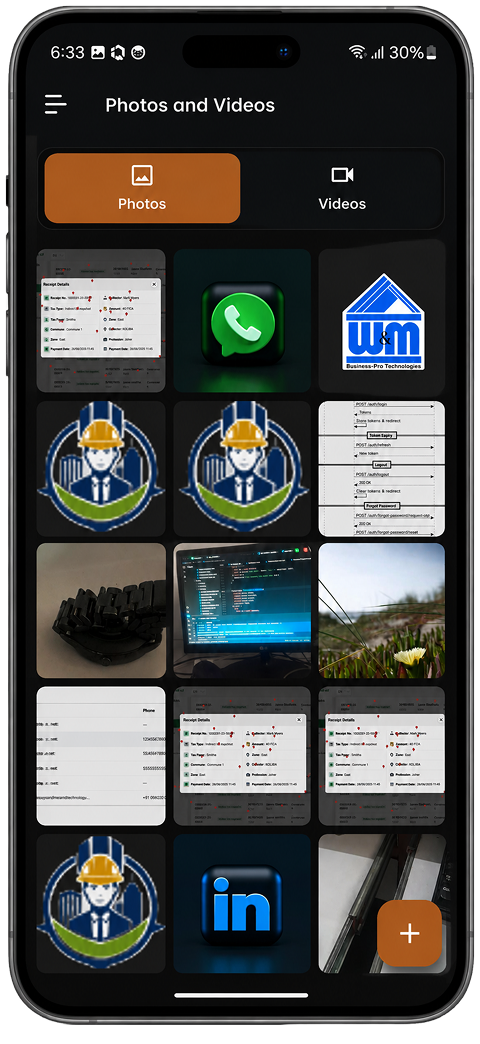

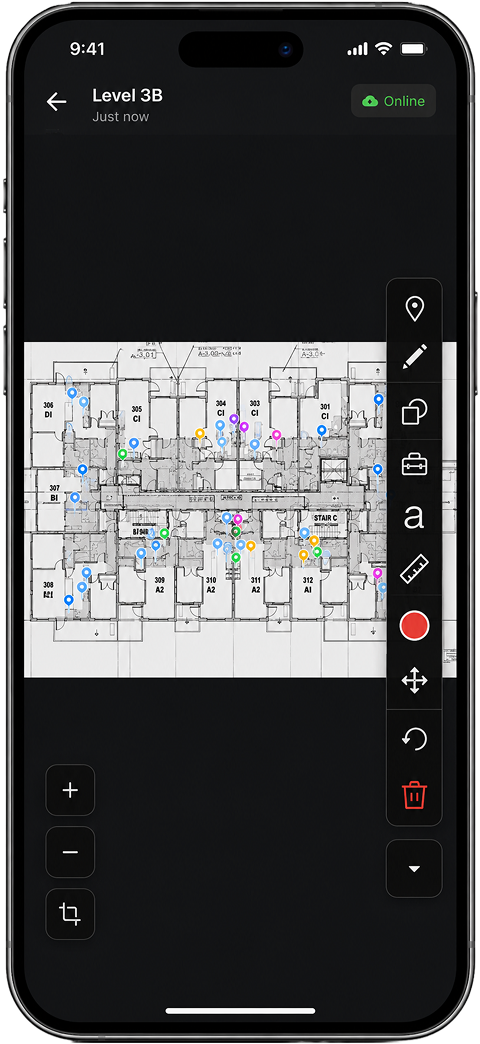

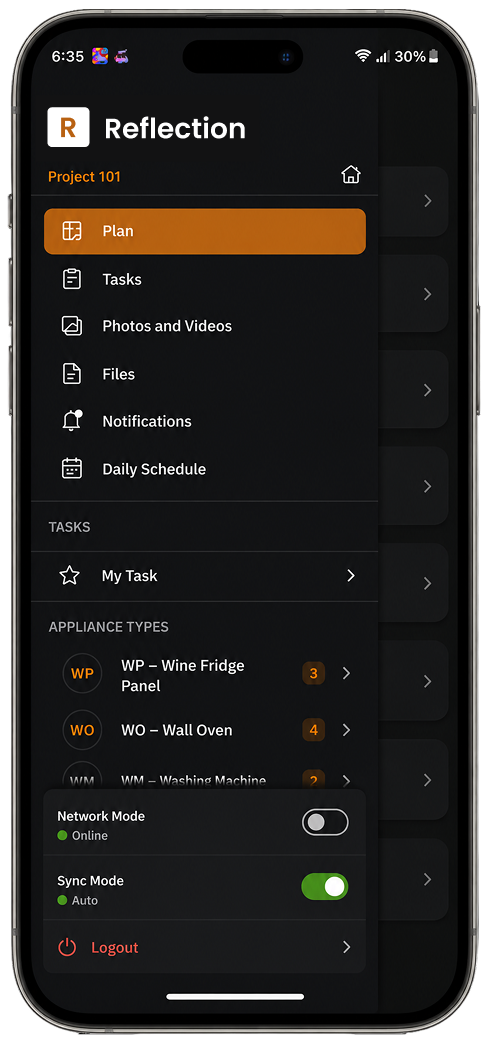

01.png 02.png 03.png 05.png 06.png 7.png 22.png 23.png 24.png
Client Profile

The team delivered a backend that truly understands construction workflows. The offline-first sync and annotation carry-forward features alone have transformed how our field crews interact with plan documents. We went from losing hours of work due to connectivity issues to zero data loss — that's a game-changer for our customers.

Marcus Thompson VP of Engineering, Fieldwire Solutions
